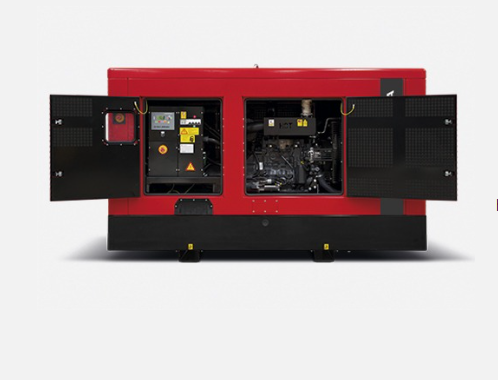

The 35–39kVA HYW-40 M5 Diesel Generator Set ensures dependable power, fuel efficiency, and YANMAR engine reliability. As a trusted diesel generator set exporter, we ensure this YANMAR-powered unit meets all international power standards.
35-39kva HYW-40 M5 Diesel Generateor Set
559
- Color: Default Color
- Size: Default Size
- Origin: China
- Usage: Default Usage
- Type: Default Type
- Efficiency: 99.9% Type
Additional Information
Description:

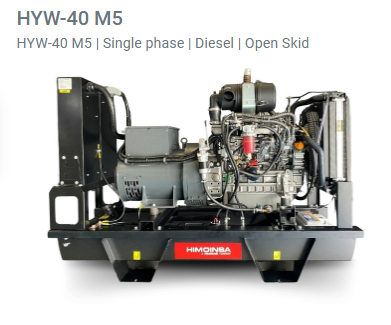

open skid

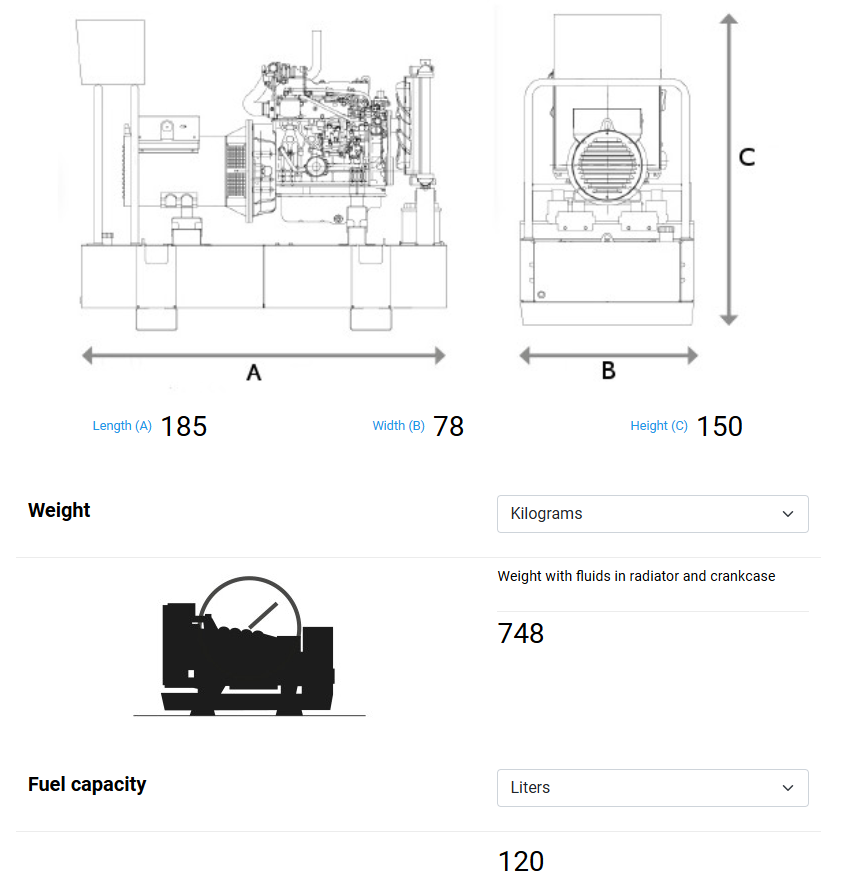

| length(CM) | width(CM) | height(CM) | weight(KG) | fuel capacity(L) |
| 185 | 78 | 150 | 748 | 120 |
soundproof
| length(CM) | width(CM) | height(CM) | weight(KG) | fuel capacity(L) | |
| standard vertion | 210 | 95 | 135 | 0 | 100 |
| high capacity vertion 1 | 210 | 95 | 141 | 0 | 190 |
| high capacity vertion 2 | 210 | 95 | 157 | 0 | 330 |
- Engine Specifications 1.500 r.p.m.

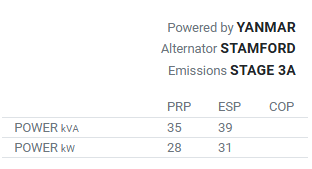

- Rated Engine Output: 37,7kW prp ; 41,8kW standby
- Manufacturer: YANMAR
- Model: 4TNV98TZGGEHR
- Engine Type: 4-stroke diesel
- Injection Type: Direct
- Aspiration Type: Turbocharged
- Number of cylinders and arrangement: 4-L
- Bore and Stroke: 98 x 110 mm
- Displacement: 3,319 L
- Cooling System: Coolant
- Lube Oil Specifications: API CF,CF-4,CI-4
- Compression Ratio: 18.1
- Fuel Consumption ESP: 10,11 l/h
- Fuel Consumption 100% PRP: 9,16 l/h
- Fuel Consumption 75 % PRP: 6,94 l/h
- Fuel Consumption 50 % PRP: 4,89 l/h
- Lube oil consumption with full load: 0,27
- Total oil capacity: 11,2 L
- Total coolant capacity: 9 L
- Governor Type Electrical
- Air Filter Type Dry
- Inner diameter exhaust pipe: 45 mm
- Diesel engine
- 4-stroke cycle
- Water-cooled
- 12V electrical system
- Water separator filter (visible level)
- Dry air filter
- Radiator with pusher fan
- Electronic governor
- Hot parts protection
- Moving parts protection
-
