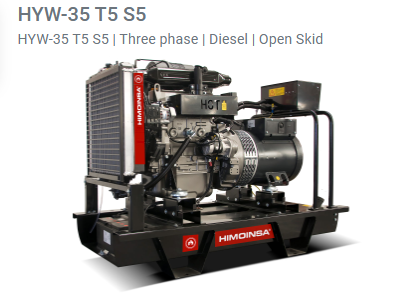

35-38kva HYW-35 T5 S5 MECC ALTE Generator Set

  • 455
Product Review | Top Rated

    Additional Information

  • Color: Default Color
  • Size: Default Size
  • Origin: China
  • Usage: Default Usage
  • Type: Default Type
  • Efficiency: 99.9% Type

Description:

  • Engine Specifications 1.500 r.p.m.
  • Rated Engine Output: 31,6kW prp ; 35,2kW standby
  • Manufacturer: YANMAR
  • Model: 4TNV98CIHR
  • Engine Type: 4-stroke diesel
  • Injection Type: Direct
  • Aspiration Type: Natural
  • Number of cylinders and arrangement: 4-L
  • Bore and Stroke: 98 x 110 mm
  • Displacement: 3,319 L
  • Cooling System: Coolant
  • Lube Oil Specifications: API CJ-4, ACEA E6, JASO DH-2
  • Compression Ratio: 18,3
  • Fuel Consumption ESP: 9,68 l/h
  • Fuel Consumption 100% PRP: 8,20 l/h
  • Fuel Consumption 75 % PRP: 6,04 l/h
  • Fuel Consumption 50 % PRP: 3,99 l/h
  • Fuel Consumption 25 % PRP: 2,23 l/h
  • Total oil capacity: 10,5 L
  • Total coolant capacity: 9 L
  • Governor Type Electrical
  • Air Filter Type Dry
  • Diesel engine
  • 4-stroke cycle
  • Water-cooled
  • 12V electrical system
  • Water separator filter (visible level)
  • Dry air filter
  • Radiator with pusher fan
  • Electronic governor
  • Hot parts protection
  • Moving parts protection
  • This 35–38 kVA diesel generator set delivers stable power, fuel efficiency, and durable Yanmar engineering for demanding operations. Explore our reliable diesel generator manufacturing solutions from China to compare models designed for industrial and commercial power needs.
