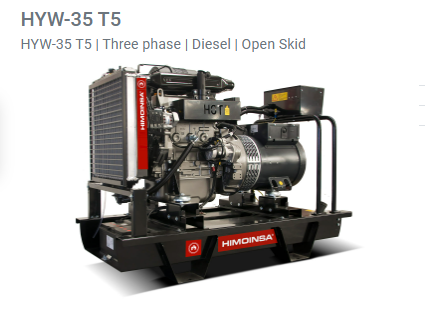

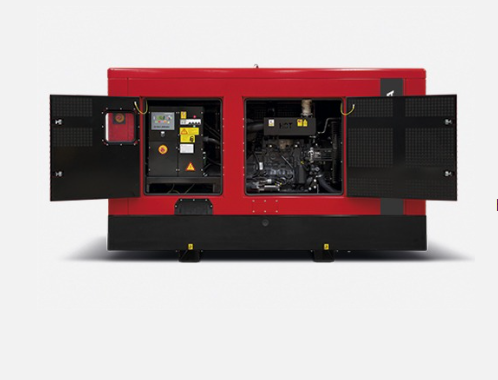

34-37kva HYW-35 T5 Diesel Generatoer Set
519
- Color: Default Color
- Size: Default Size
- Origin: China
- Usage: Default Usage
- Type: Default Type
- Efficiency: 99.9% Type
Additional Information
Description:
- Engine Specifications 1.500 r.p.m.
- Rated Engine Output: 30,7kW prp ; 34,1kW standby
- Manufacturer: YANMAR
- Model: 4TNV98GGEH
- Engine Type: 4-stroke diesel
- Injection Type: Direct
- Aspiration Type: Natural
- Number of cylinders and arrangement: 4-L
- Bore and Stroke: 98 x 110 mm
- Displacement: 3,319 L
- Cooling System: Coolant
- Lube Oil Specifications: SAE 3 class 10W30 / API grade CD,CF
- Compression Ratio: 18,5
- Fuel Consumption ESP: 8,53 l/h
- Fuel Consumption 100% PRP: 7,60 l/h
- Fuel Consumption 75 % PRP: 5,70 l/h
- Fuel Consumption 50 % PRP: 4,05 l/h
- Lube oil consumption with full load: 0,27
- Total oil capacity: 10,5 L
- Total coolant capacity: 9 L
- Governor Type Mechanical
- Air Filter Type Dry
- Inner diameter exhaust pipe: 45 mm
- Diesel engine
- 4-stroke cycle
- Water-cooled
- 12V electrical system
- Water separator filter (visible level)
- Dry air filter
- Radiator with pusher fan
- Mechanical governor
- Hot parts protection
- Moving parts protection
-
