| Products Generator Set Diesel Generator set 34-37kva HYW-35 T5 Diesel Mecc Alte Generator set
  • 34-37kva HYW-35 T5 Diesel Mecc Alte Generator set
  • 34-37kva HYW-35 T5 Diesel Mecc Alte Generator set
  • 34-37kva HYW-35 T5 Diesel Mecc Alte Generator set
  • 34-37kva HYW-35 T5 Diesel Mecc Alte Generator set
  • 34-37kva HYW-35 T5 Diesel Mecc Alte Generator set

    • 34-37kva HYW-35 T5 Diesel Mecc Alte Generator Set

    • 445
    Product Review | Top Rated

      Additional Information

    • Color: Default Color
    • Size: Default Size
    • Origin: China
    • Usage: Default Usage
    • Type: Default Type
    • Efficiency: 99.9% Type
    Inquire Now

    Description:

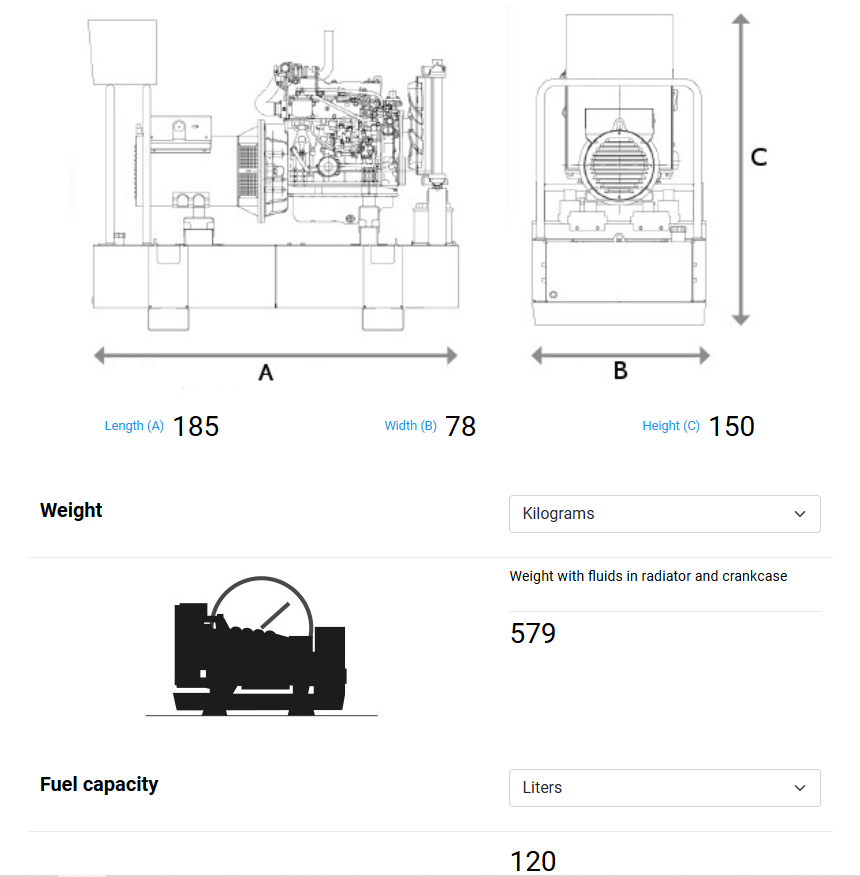

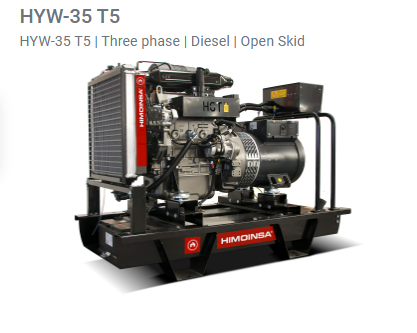

    open skid

    length(CM) width(CM) height(CM) weight(KG) fuel capacity(L)
    185 78 105 579 120

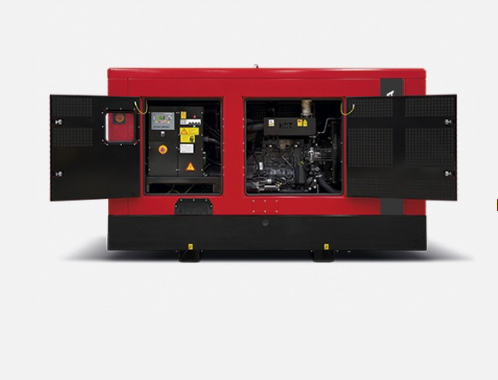

    soundproof

      length(CM) width(CM) height(CM) weight(KG) fuel capacity(L)
    standard vertion 210 98 135 0 100
    high capacity vertion 1 210 98 141 0 190
    high capacity vertion 1 210 98 157 0 330

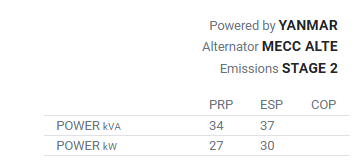

    • Engine Specifications 1.500 r.p.m.
    • Rated Engine Output: 30,7kW prp ; 34,1kW standby
    • Manufacturer: YANMAR
    • Model: 4TNV98GGEH
    • Engine Type: 4-stroke diesel
    • Injection Type: Direct
    • Aspiration Type: Natural
    • Number of cylinders and arrangement: 4-L
    • Bore and Stroke: 98 x 110 mm
    • Displacement: 3,319 L
    • Cooling System: Coolant
    • Lube Oil Specifications: SAE 3 class 10W30 / API grade CD,CF
    • Compression Ratio: 18,5
    • Fuel Consumption ESP: 8,53 l/h
    • Fuel Consumption 100% PRP: 7,60 l/h
    • Fuel Consumption 75 % PRP: 5,70 l/h
    • Fuel Consumption 50 % PRP: 4,05 l/h
    • Lube oil consumption with full load: 0,27
    • Total oil capacity: 10,5 L
    • Total coolant capacity: 9 L
    • Governor Type Mechanical
    • Air Filter Type Dry
    • Inner diameter exhaust pipe: 45 mm
    • Diesel engine
    • 4-stroke cycle
    • Water-cooled
    • 12V electrical system
    • Water separator filter (visible level)
    • Dry air filter
    • Radiator with pusher fan
    • Mechanical governor
    • Hot parts protection
    • Moving parts protection

    • This 34–37 kVA HYW-35 T5 diesel generator delivers reliable Yanmar performance for industrial and commercial needs. For broader options and global supply support, explore our diesel generator set export solutions to find the right power range for your project.
