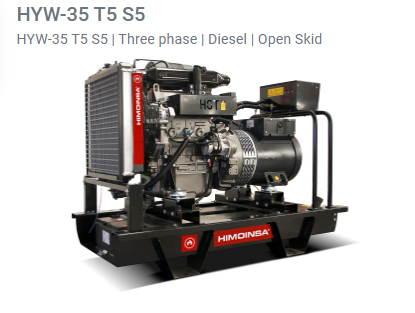

35-38KVA HYW-35 T5 S5 Stage V Generator Set
500
- Color: Default Color
- Size: Default Size
- Origin: China
- Usage: Default Usage
- Type: Default Type
- Efficiency: 99.9% Type
Additional Information
Description:
- Engine Specifications 1.500 r.p.m.
- Rated Engine Output: 31,6kW prp ; 35,2kW standby
- Manufacturer: YANMAR
- Model: 4TNV98CIHR
- Engine Type: 4-stroke diesel
- Injection Type: Direct
- Aspiration Type: Natural
- Number of cylinders and arrangement: 4-L
- Bore and Stroke: 98 x 110 mm
- Displacement: 3,319 L
- Cooling System: Coolant
- Lube Oil Specifications: API CJ-4, ACEA E6, JASO DH-2
- Compression Ratio: 18,3
- Fuel Consumption ESP: 9,68 l/h
- Fuel Consumption 100% PRP: 8,20 l/h
- Fuel Consumption 75 % PRP: 6,04 l/h
- Fuel Consumption 50 % PRP: 3,99 l/h
- Fuel Consumption 25 % PRP: 2,23 l/h
- Total oil capacity: 10,5 L
- Total coolant capacity: 9 L
- Governor Type Electrical
- Air Filter Type Dry
- Diesel engine
- 4-stroke cycle
- Water-cooled
- 12V electrical system
- Water separator filter (visible level)
- Dry air filter
- Radiator with pusher fan
- Electronic governor
- Hot parts protection
- Moving parts protection
-
