| Products Generator Set Diesel Generator set 34-37kva HYW-35 T5 Diesel STAMFORD Generator set
  • 34-37kva HYW-35 T5 Diesel STAMFORD Generator set
  • 34-37kva HYW-35 T5 Diesel STAMFORD Generator set
  • 34-37kva HYW-35 T5 Diesel STAMFORD Generator set
  • 34-37kva HYW-35 T5 Diesel STAMFORD Generator set
  • 34-37kva HYW-35 T5 Diesel STAMFORD Generator set

    • 34-37kva HYW-35 T5 Diesel STAMFORD Generator Set

    • 439
    Product Review | Top Rated

      Additional Information

    • Color: Default Color
    • Size: Default Size
    • Origin: China
    • Usage: Default Usage
    • Type: Default Type
    • Efficiency: 99.9% Type
    Inquire Now

    Description:

    open skid

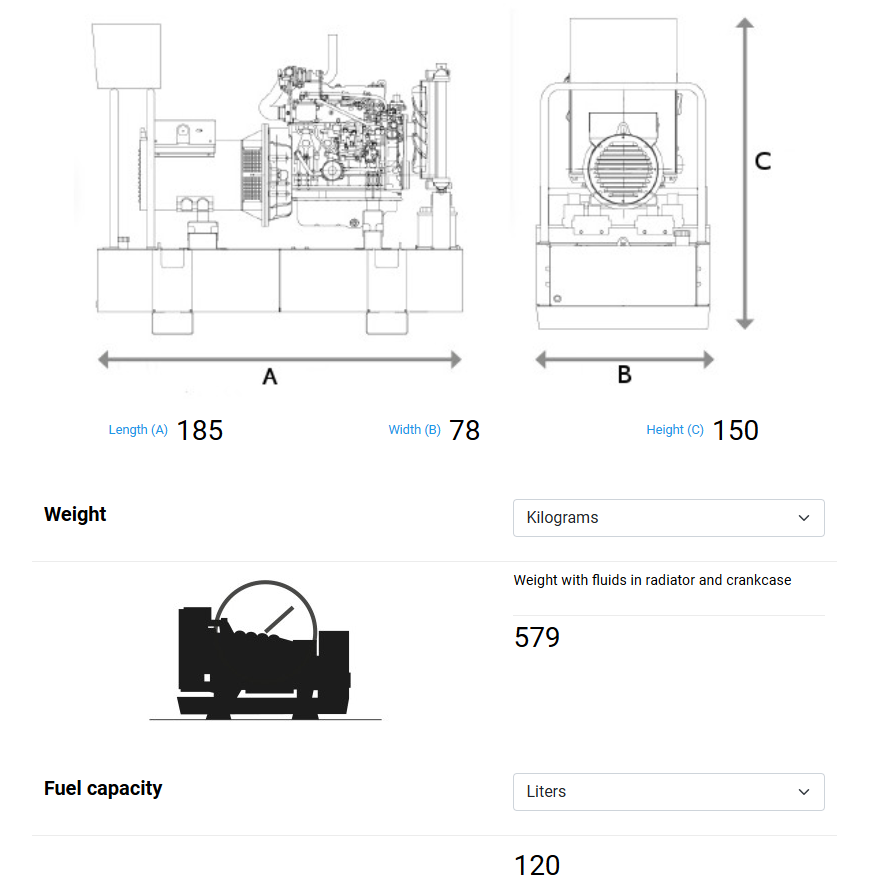

    length(CM)  width(CM)  height(CM) weight(KG) fuel capacity(L)
    185 78 150 579 120

    soundproof

      length(CM)  width(CM) height(CM) weight(KG) fuel capacity(L)
    standard 210 98 135 0 100
    high capacity version 1 210 98 141 0 190
    high capacity version 1 210 98 157 0 330
    • Engine Specifications 1.500 r.p.m.
    • Rated Engine Output: 30,7kW prp ; 34,1kW standby
    • Manufacturer: YANMAR
    • Model: 4TNV98IGEHR
    • Engine Type: 4-stroke diesel
    • Injection Type: Direct
    • Aspiration Type: Natural
    • Number of cylinders and arrangement: 4-L
    • Bore and Stroke: 98 x 110 mm
    • Displacement: 3,319 L
    • Cooling System: Coolant
    • Lube Oil Specifications: SAE 3 class 10W30 / API grade CD,CF
    • Compression Ratio: 18,5
    • Fuel Consumption ESP: 8,53 l/h
    • Fuel Consumption 100% PRP: 7,60 l/h
    • Fuel Consumption 75 % PRP: 5,70 l/h
    • Fuel Consumption 50 % PRP: 4,05 l/h
    • Lube oil consumption with full load: 0,27
    • Total oil capacity: 10,5 L
    • Total coolant capacity: 9 L
    • Governor Type Mechanical
    • Air Filter Type Dry
    • Inner diameter exhaust pipe: 45 mm
    • Diesel engine
    • 4-stroke cycle
    • Water-cooled
    • 12V electrical system
    • Water separator filter (visible level)
    • Dry air filter
    • Radiator with pusher fan
    • Mechanical governor
    • Hot parts protection
    • Moving parts protection

    • This 34–37 kVA diesel generator delivers reliable power, fuel efficiency, and durable Yanmar performance for diverse applications. Explore our global diesel genset export solutions category to compare similar models designed for industrial and commercial power needs worldwide.
